Make a modular bathroom cabinet

This modular bathroom cabinet is made up of separate cubes that can be added to create the ultimate bathroom storage. Mounted on a sturdy base, you can add cubes with drawers, cubes for shelves, or cubes with doors for cupboard to hideaway bathroom clutter.









YOU WILL NEED:

		QTY	W	L	MATERIAL	ITEM
	A	1	300	800	16mm SupaWood	Base top
	B	2	34	800	16mm SupaWood	Base front/back apron
	C	2	34	268	16mm SupaWood	Base side apron
	D	2	100	300	16mm SupaWood	Base bottom
	E	4	100	118	16mm SupaWood	Base leg front
	F	4	84	100	16mm SupaWood	Base leg inner
	G	2	300	400	16mm SupaWood	Cube top/bottom
	H	2	300	368	16mm SupaWood	Cube sides
	J	2	16	283	16mm SupaWood	Cube drawer divider
	Additional components:
			276	368	16mm SupaWood	Shelf
			364	364	16mm SupaWood	Door



30mm wood screws

Optional: Butt hinges + 12mm screws for mounting doors

Wood filler

Plascon Kitchens & Bathrooms paint

Plascon Glazecoat (matt or gloss) or Prominent Paints clear acrylic sealer

8 x Roofing washers and 12mm screws

TOOLS:

Drill/Driver and assorted bits

Countersink bit

Orbital or random orbit sander + 180- and 240-grit sanding pads

Bosch PFS spray system or painting equipment

Tape measure and pencil

Have all your SupaWood cut to size at your local Builders Warehouse. And you will find all the supplies you need for this project in store as well.













HERE'S HOW:

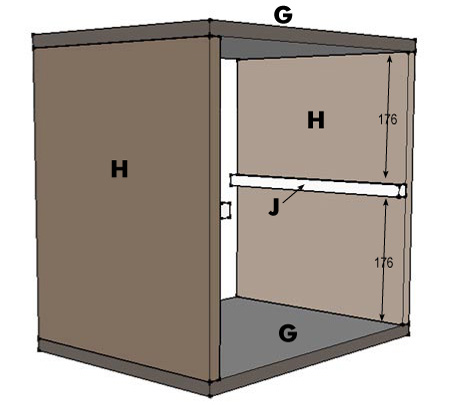

CUBE DIAGRAM

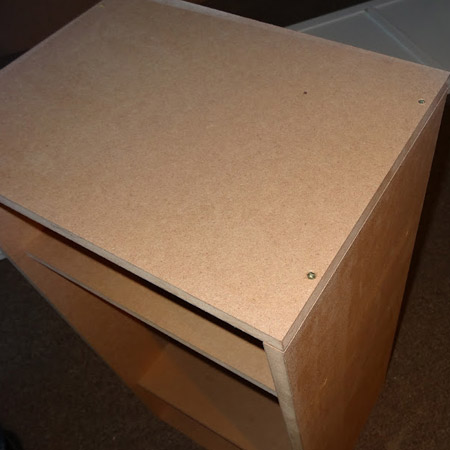

As per the cube diagram, assemble the cubes as shown. Pre-drill countersunk pilot holes through the top and bottom to attach the sides. Measure down/up on both sides to mark the position for the drawer divider. Pre-drill countersunk pilot holes to attach the divider to the inside of the cube.

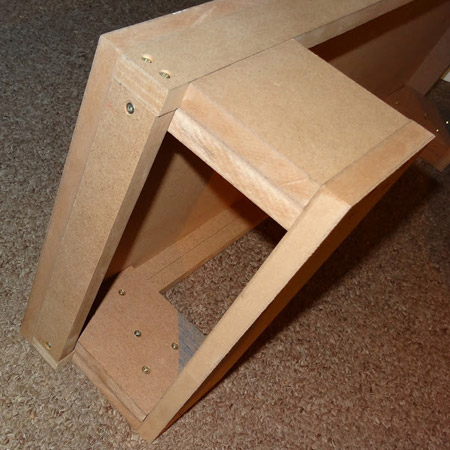

Make additional cubes in the same way, adding shelves or a drawer divider for drawer units. Measure and mark for shelf placement and then pre-drill countersunk pilot holes through the sides. For the cube with a door, attach butt hinges to the side edge of the door and mount onto the inside of the cabinet.

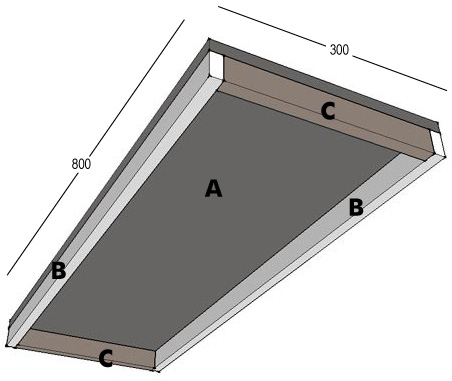

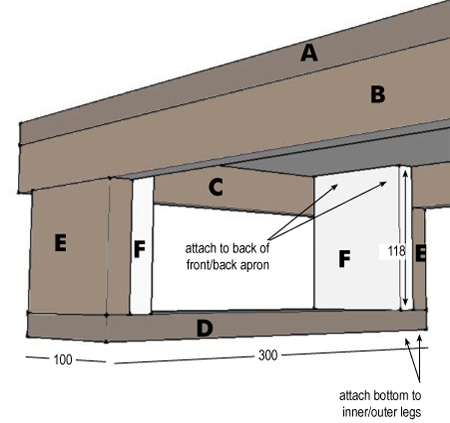

BASE DIAGRAM

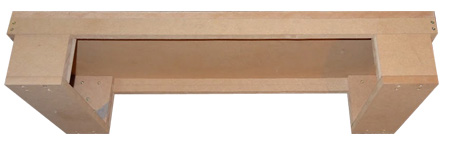

The design of the base provides a sturdy and secure platform for a wide configuration of storage cubes. If you want, you can make the base long, but I would then recommend adding a centre leg to the design to prevent the board from bowing under the weight.

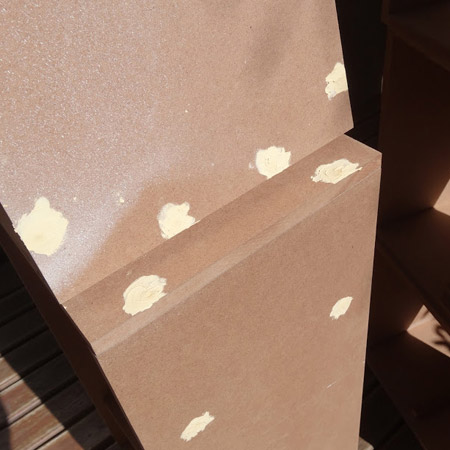

Fill all holes with wood filler and let this dry before sanding smooth with 180-grit sandpaper. It is best to use a sander - orbital or random orbit - for sanding these areas, as a sander leaves a much smoother finish than hand sanding. Sand all cut edges with 240-grit sandpaper until smooth.





I use a Bosch PFS 65 spray system for all my projects. It makes painting so much easier and leaves a professional finish. When mixing paint I normally add about 20% water to the mix for the first coat, and 10% water for the remainder. Set the spray gun on the lowest setting for a super-fine spray. If you don't have a Bosch PFS, you can use a foam roller to apply paint.

For bathroom cabinets I apply Plascon Kitchens & Bathroom paint. This a premium quality water-based enamel paint and is formulated with silver technology that protects the paint film surface and inhibits the growth of micro-organism. This paint leaves a matt finish, so I add further protection with two coats of Plascon Glazecoat in gloss or Prominent clear acrylic sealer. It also comes in matt if you prefer a flat finish.

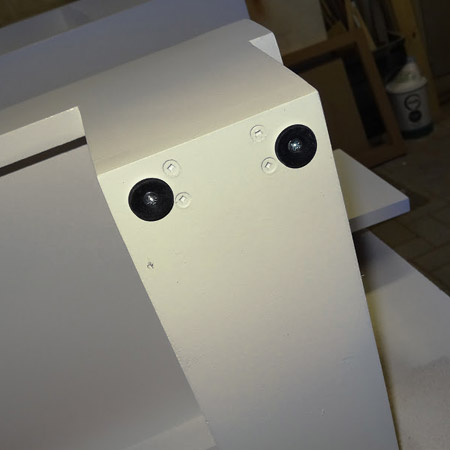

It's also important to prevent the finished project from touching the floor, especially in a bathroom. SupaWood is absorbent and by fitting roof washers to the bottom of your new bathroom cabinets, you reduce the possibility of moisture absorption through the base.



DRAWER DIAGRAM





Assemble the drawers as shown above by pre-drilling countersunk pilot holes through the front and back into the sides and for mounting the base. The base slips snugly between the sides, front and back.





Here are the finished drawer and shelf cubes waiting for doors and shelf front to be attached.

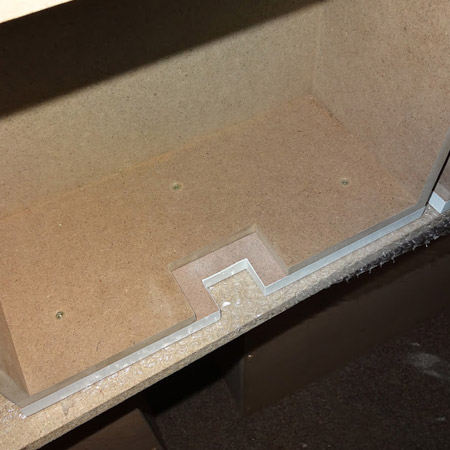

Just before attaching the drawer fronts I realised that I hadn't done the cutouts for the handles. You can use a jigsaw to do this and sand smooth and then paint. Or be clever and cut out the holes for handles before you paint...!





That looks better.

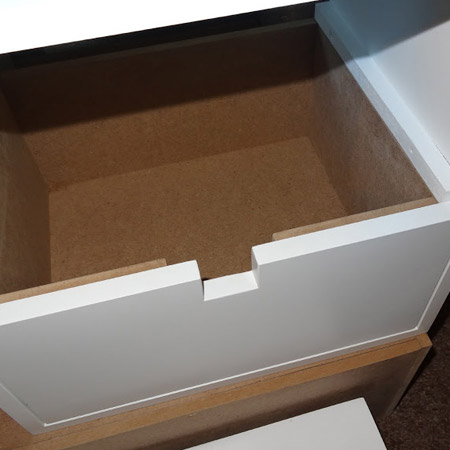

Drawer fronts are attached and the handle slots are now cut out and finished.

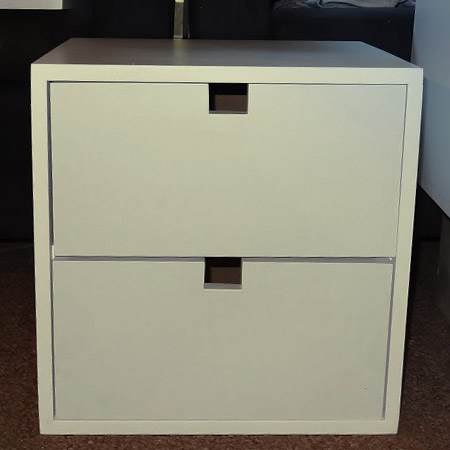

Now you can see what the finished drawer cube looks like. The drawers are sized to fit perfectly within the cube and the drawer divider [J] allows easy opening and closing of the drawers. Below is a basic configuration that includes a rectangular shelf unit and 2-drawer cube unit.





This design allows you to add any configuration of storage cubes, cupboards and shelf units.
